AMATEURS DE PRODUCTIONS VIRTUELLES : DITES BONJOUR À EZtrack® !

Tracking de caméra et d’objets en 3D temps-réel facile à installer, facile à déployer

Conçu pour offrir un tracking caméra précis pour tout plateau portable, EZtrack® vient répondre
aux besoins des équipes créatives cherchant une solution Plug&Play, et promet un déploiement
rapide de leur Studio Virtuel.

Vidéo d’Introduction

Lancé sur le marché en tant que combinaison la plus récente entre la technologie Lighthouse de Valve Corporation et les outils reconnus de SolidAnim pour la Production Virtuelle, EZtrack® repose sur une unité système compacte dirigée par une interface intuitive.

LE CHEMIN LE PLUS RAPIDE VERS LE TRACKING CAMÉRA

Fonctionnant comme un « Hub », l’Unité Système Principale traite les données de tracking en temps-réel avant de les envoyer à la station de rendu 3D. Du tracking en direct à la composition 3D, le processus reste simple et promet un contrôle complet à chaque étape.

UN HUB PRET A L’EMPLOI

EZtrack® intègre un hub pour détecter la position 3D de la caméra dans un système compact. Grâce à son électronique sur mesure, ce hub fournit à la fois des informations Genlock et des données de zoom/focus acquises par la lentille encodée, tout en étant compatible avec de nombreuses lentilles de diffusion

X4 Base Stations
Câble de lentille pour la plupart des lentilles (Canon, Fujinon, Angénieux…)
X3 Trackers + 1 Plateforme métallique pour attaquer le tracker sur la caméra + 1 Attache pour le tracker d’étalonnage
X1 Matériel EZtrack avec système de fixation en V
  • Le système fonctionne avec la technologie SteamVR™ Tracking V2.0 (Lighthouse) de Valve Corporation, mais EZtrack® est déjà compatible avec les moteurs de tracking actuels mais aussi ceux de demain !
  • EZtrack est développé en s’appuyant sur une évolutivité technologique en ce qui concerne les protocoles supportés et la compatibilité avec les moteurs 3D.
    • Matériel très réduit : aucun marqueur, mouvements de caméra libres et tracking sur plusieurs axes(une Unité Système Principale EZtrack® nécessaire pour chaque axe de caméra suivi)

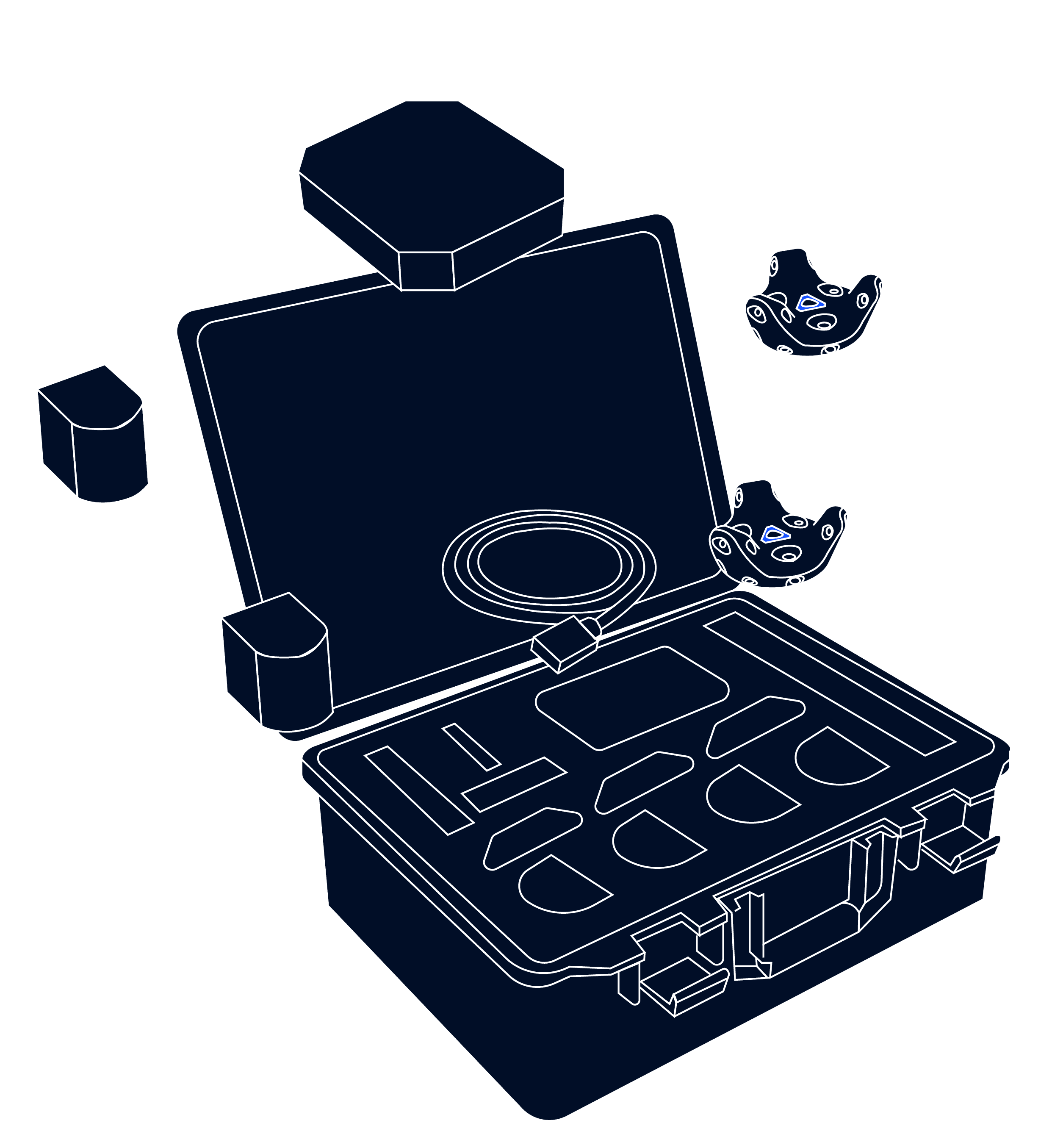

    • Un kit EZtrack® Studio contient l’Unité Système Principale + 4 Base Stations + 3 Trackers + 1 Système de fixation caméra + 1 câble de lentille.
    • Le kit est contenu dans une boîte Pelicase™ compacte : hautement transportable et prêt à être déployé sur tout type de plateau.

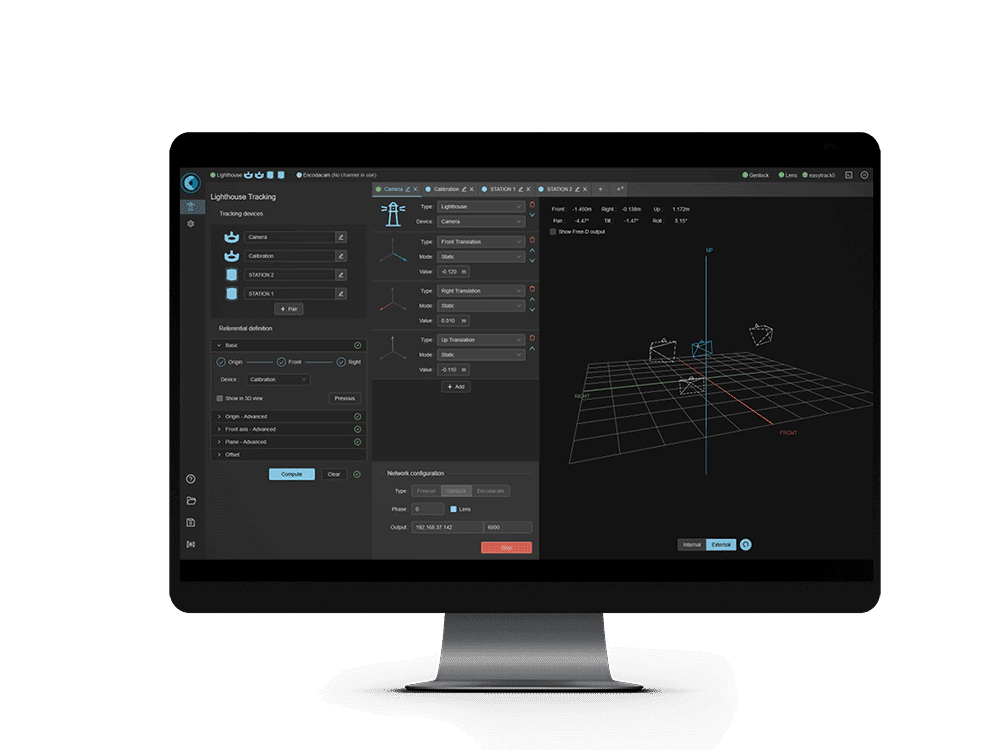

      • Unique WebApp provided to entirely remote control the system.
      • Intuitive interface displaying all tracking information centralized in one-tab screen.
      • Accessible from any computer on the studio network, even from your smartphone or tablet!
      • Rest API included for custom pipeline integration.
      • ONE CORE SYSTEM UNIT TO RULE THE SET

        Achieving an excellent value for money, the solution has been especially engineered to be lighter and easier to use than other tracking products, thus enabling quick deployment of your virtual studio set-up with significantly less efforts.

        Designed for mastering virtual studio conditions without many reflective surfaces, every EZtrack® Core System Unit can handle up to 1 camera rig and up to 2 objects or live talents tracking.

        From live TV sets to On-Set Previs, EZtrack® can be interfaced with multiple configurations :

        • Virtual Studio setup for Live show/Live Entertainment in Augmented Reality (AR)
        • Camera tracking : steadycams and handheld cameras, dollies, small cranes
        • Objects tracking : 3D assets insertion, virtual accessories
        • Talent tracking: automatic depth compositing
        • Discover EZtrack® use-cases

          Technical specifications

          Dimensions

          200 x 150 x 65 mm

          Signal synchronization

          Genlock input to sync camera tracking / Black burst and tri level

          Lens support

          Lens cable provided for the manufacturers : Canon, Fujinon, Angénieux

          Trackers I/O

          Up to 3 trackers inputs supported per unit

          Tracking engine

          SteamVR™ Tracking V2.0 (Lighthouse)

          Protocol support

          Free D over UDP

          25 min
          H/W + Software Set-up
          1min
          Studio Calibration
          0,02°
          Angular Resolution
          1mm
          Positional Resolution

          Real-time 3D at the heart of the system

          EZtrack® interfaces with cutting edge real-time 3D technologies such as Unreal Engine 4 from Epic Games and Unity 3D, as well as live broadcast engines such as Zero Density, Ventuz.

          We provide dedicated plugins for these engines as a comprehensive user interface.

          For custom-oriented integrations, we provide a “Rest” API in standard with every system.

          Native support of the encoded lenses

          Thanks to its proprietary interface, the EZtrack® Core System Unit natively supports encoded lenses to get raw zoom/focus data. The system does support lenses from Canon, Fujinon and Angénieux – More manufacturers support is on track!

          Upgradable tracking for mechanical rigs & controlers

          EZtrack® can be upgraded to support mechanical rigs such as Kuper Controls from Encodacam and Preston Lens Control Systems, so user will be able to track complex movements of a crane or dolly, and every single incrementation of zoom/focus.

          Reliable Tracking Engine

          Up to 4 base stations are supported per single system unit.

          Each EZtrack® Core System Unit can operate only one camera axis and one 3D rendering station at the same time – If multiple camera axis need to be tracked on set, then the corresponding EZtrack® system units and 3D rendering stations will have to be set-up accordingly.

          Base stations emit infrared to dynamically localize trackers within the tracking area.

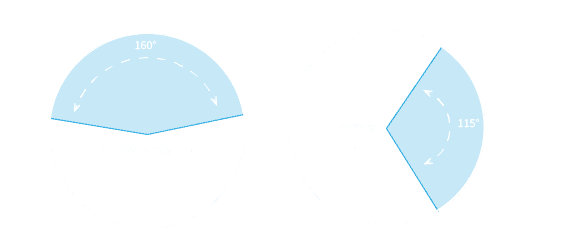

          Each base station covers 160° horizontally, 115° vertically, up to 7 meters for signal acquisition.

          The 3D pose estimation is done using swept angle laser tracking and IMU fusion based on the SteamVR™ Tracking V2.0 (Lighthouse) technology from Valve Corporation.

          Base Stations operating angles for tracking acquisition

          Tracked area : zone for the camera to move inside the studio

          VIRTUAL STUDIO FINALLY BECOMES BUDGET-FRIENDLY

          EZTRACK® “ESSENTIALS” KIT

          Core System Unit



          Lighthouse tracking kit: 4 Base Stations + 3 trackers



          EZtrack camera(2 Rods, 2 mounting ring, 1 tracker base)



          Pelicase™ travel box: Essential version



          1 Lens cable (specify lens model at order)



          Web app interface



          Remote Suport LV1

          Provided over 6 month following system purchase



          Software Operating System updates

          Provided over 6 month following system purchase

          EZTRACK® “COMPLETE STUDIO” BUNDLE

          Core System Unit



          Lighthouse tracking kit: 4 Base Stations + 3 trackers



          EZtrack camera(2 Rods, 2 mounting ring, 1 tracker base)



          Pelicase™ travel box : Complete Studio version



          1 Lens cable (specify lens model at order)



          Web app interface



          Remote Suport LV1

          Provided over 6 month following system purchase



          Software Operating System updates

          Provided over 6 month following system purchase

          SYSTEM STARTING AT 9 999€*

          *Dedicated training and system set-up not included ; these are available as separate options

          DEDICATED SERVICES FOR VIRTUAL PRODUCTION

          Our inhouse Virtual Production Department is disposed to provide custom support adapted to every project request! We can either provide outsourced services such as complex 3D content creation, Motion Capture and/or directly On-Set Operations such as studio AR integration, tracking on demand or lens calibration.

          EZtrack® CUSTOM SUPPORT

          ON-SITE TRAINING

          Two-day training program to get the most out of your system

          TRACKING ON-DEMAND

          Rent your complete EZtrack® system in a box, ready to deploy

          CUSTOM 3D
          OPERATIONS

          3D CONTENT CREATION

          Get access to 3D photorealistic environments, Motion Capture

          HYBRID WORKFLOW

          Our team delivers high end virtual production capabilities to the sets

          STUDIO CONSULTING

          We can help you setting-up from scratch and installing your own virtual studio

          https://www.youtube.com/watch?v=YKCWXXvIhfU&feature=youtu.be

          Get access to a live demo of EZtrack®

          Custom quotation for a project

          On set services for Virtual Production

          FROM PREVIS TO LIVE-TO-AIR: EZtrack® USE-CASES

          PROVEN RECORDS OF 3D VISUAL CONTENT CREATION

          We, at SolidAnim, are an independent production studio specialized in 3D animation and Virtual Production fields, relying on 40+ talented artists, technical artists and multipurpose yet experienced developers inhouse.

          Our technical and artistical expertise are recognized for more than 13 years by reputed actors of animation, cinema and broadcast medias companies in France and internationally. Blending unique proprietary technologies and proven methodology of production, our team is able to meet all project sizes and complexities.

          We are convinced that the future of Virtual Production will be 100% real-time!

          SolidAnim’s engineers and artists are thrilled to deliver and release new innovative solutions in terms of 3D visual editing ; solutions that have demonstrated quite effectiveness from the own perspective of our clients and partners.

          Discover SolidAnim
