EZtrack® – User Guide

Overview

EZtrack is an innovative camera tracking system implementing an embedded hardware and software system for real-time experiences. After attaching it to your camera and a quick setup phase, it delivers accurate 3D tracking, image sync, zoom & focus data, communication with live render engines and multi axes tracking.

The system is based on the Lighthouse technology from Valve Corporation for precise 3D localization, and custom-made electronics embedded in a Core System Unit providing both Genlock and lens data (zoom/focus) from the broadcast lenses.

The system interface is accessible from any computer or tablet connected to the studio’s network, using a web application.

What’s in the box ?

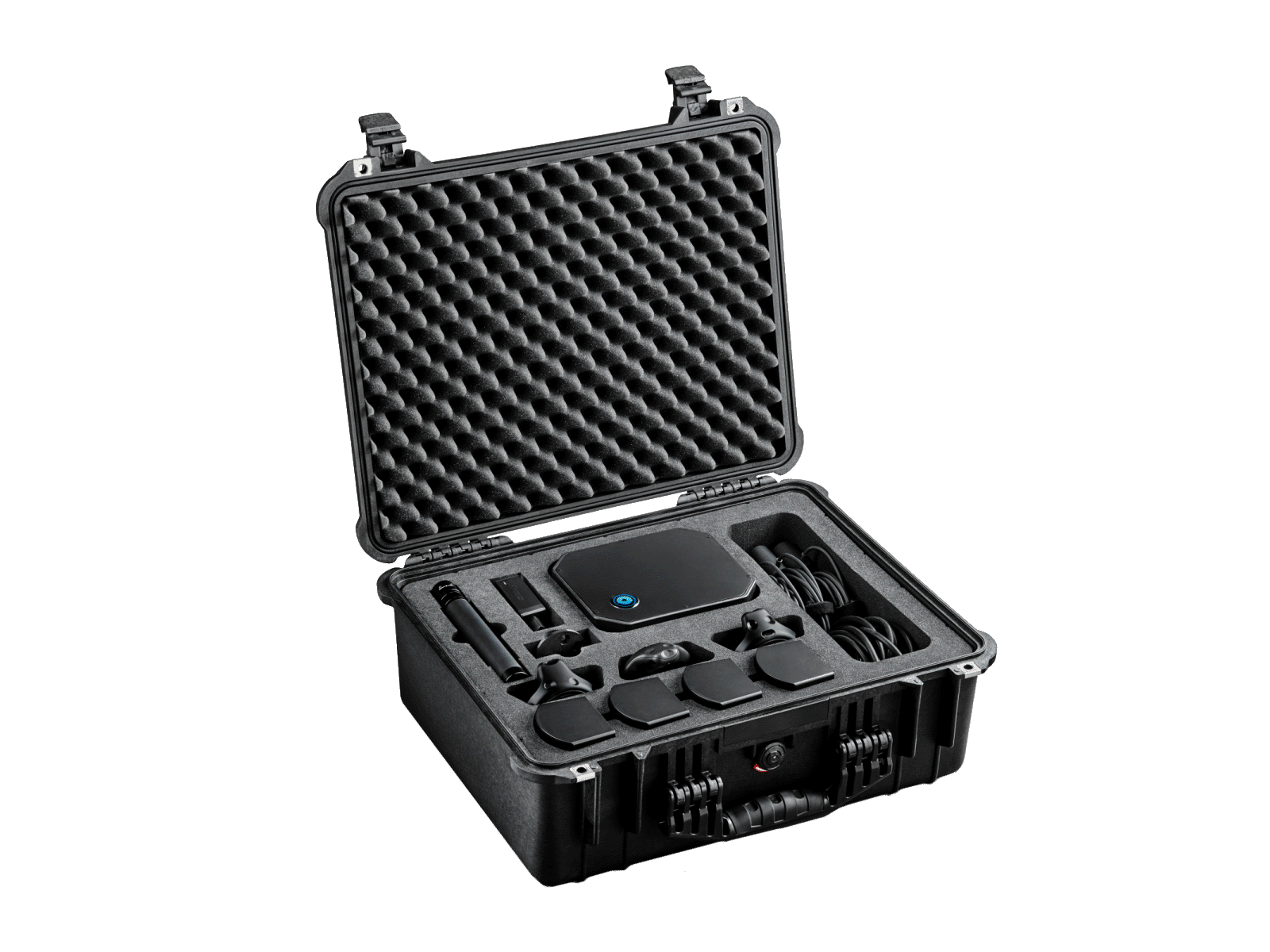

EZtrack pelicase

When you unpack your EZtrack system, you’ll find the following components, depending on the kit provided:

EZtrack “Essentials” kit:

• a core system unit (EZtrack box) + 12v power unit + schuko cable

• 1 lens cable (depending on the order)

• screws

EZtrack “Complete Studio” kit:

• a core system unit (EZtrack box) + 12v power unit + schuko cable

• 4 base stations (+4 power units)

• 3 trackers + 3 usb dongles + 3 micro-usb <-> usb cables

• 2 rods (length: 30cm, diameter: 15mm)

• 3 rod clamp dual

• 1 tracker base

• 1 hand grip

• 1 lens cable (depending on the order)

• screws
