Process

1. Mapping

One must first convert the many images into processed data usable by the solver. This is the Mapping step.

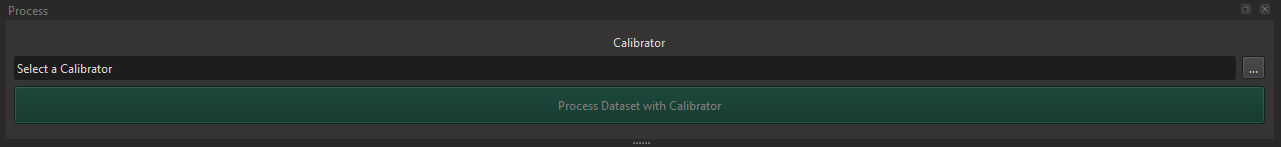

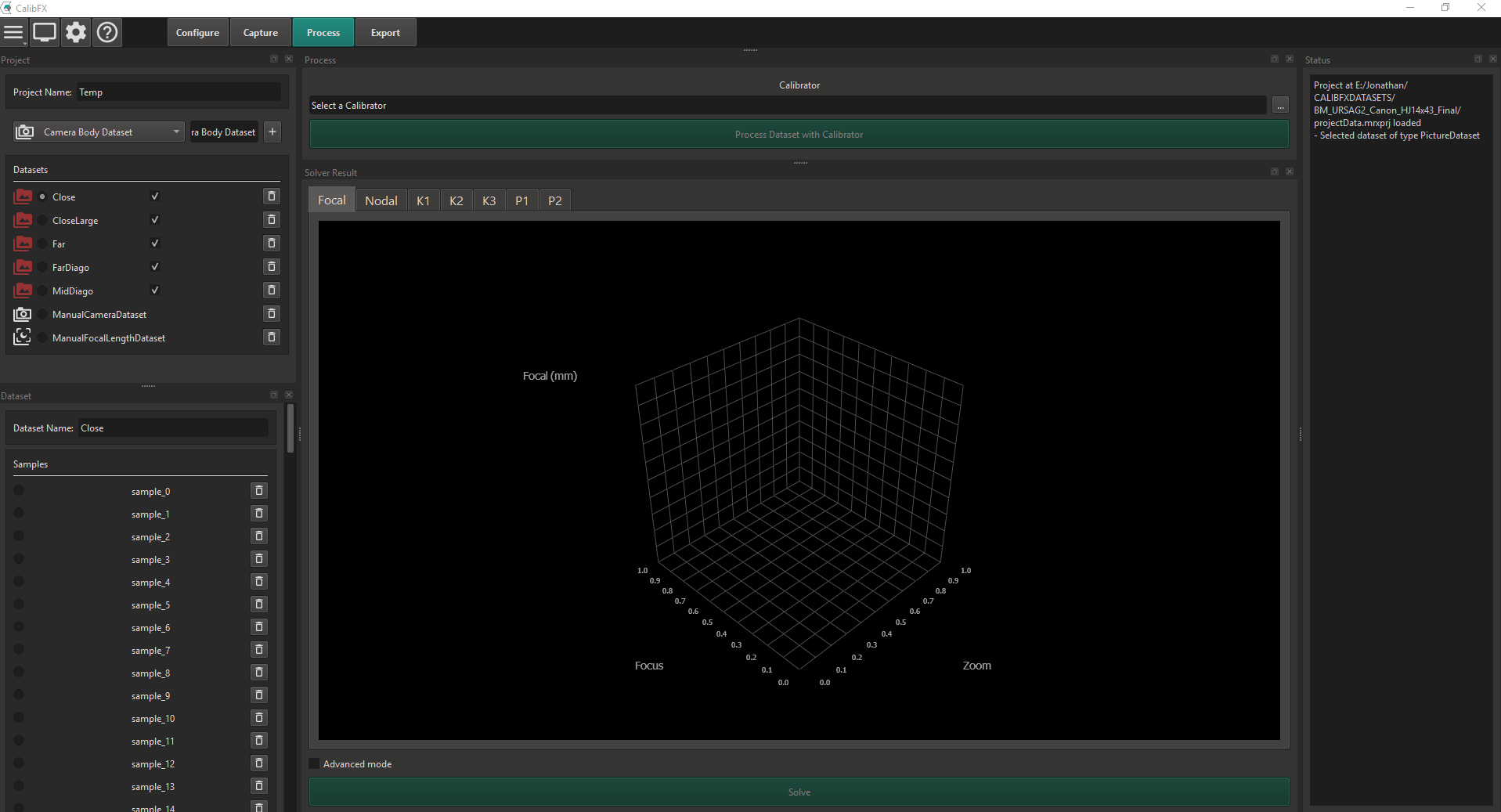

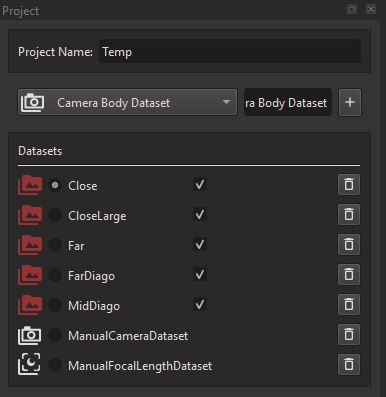

For each dataset in your project, on the left, select it and go to the "Process" dock:

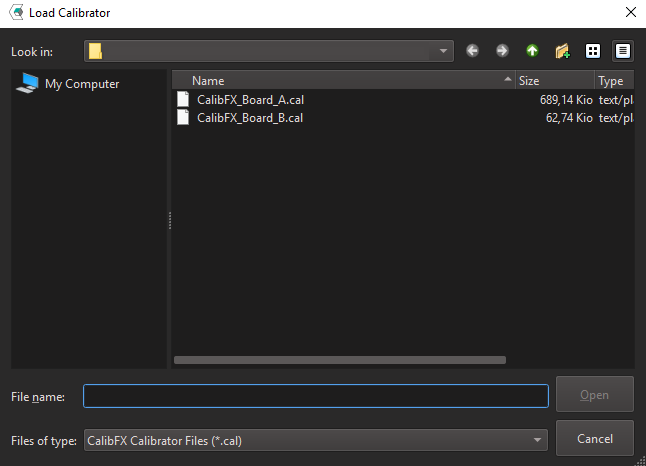

Click on the "..." button on the right. A browser will appear:

Select the side of the board used in this particular dataset (board A means small tags, board B big tags)

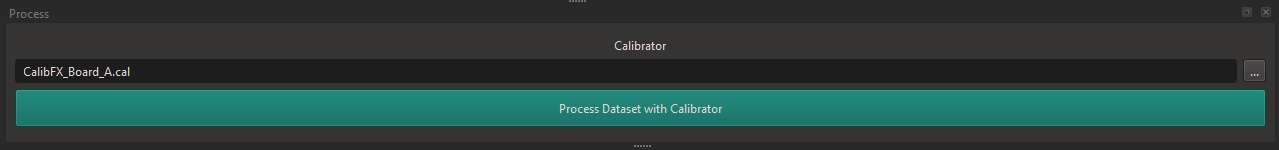

The "Process Dataset with Calibrator" button is now unlocked. Press it and wait for the dataset to finish converting.

Do this for all you Picture Datasets.

Note

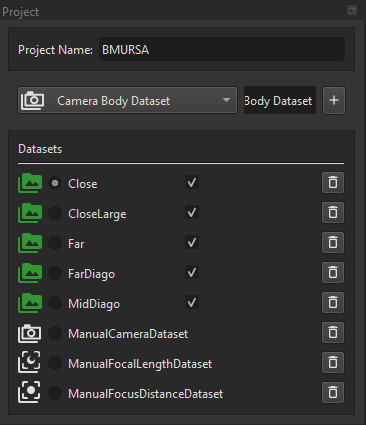

The icon of a dataset turns green once it is mapped.

Once all datasets are mapped, the "Solve" button is unlocked. Press it and wait (for dozens of minutes, go grab a coffee).

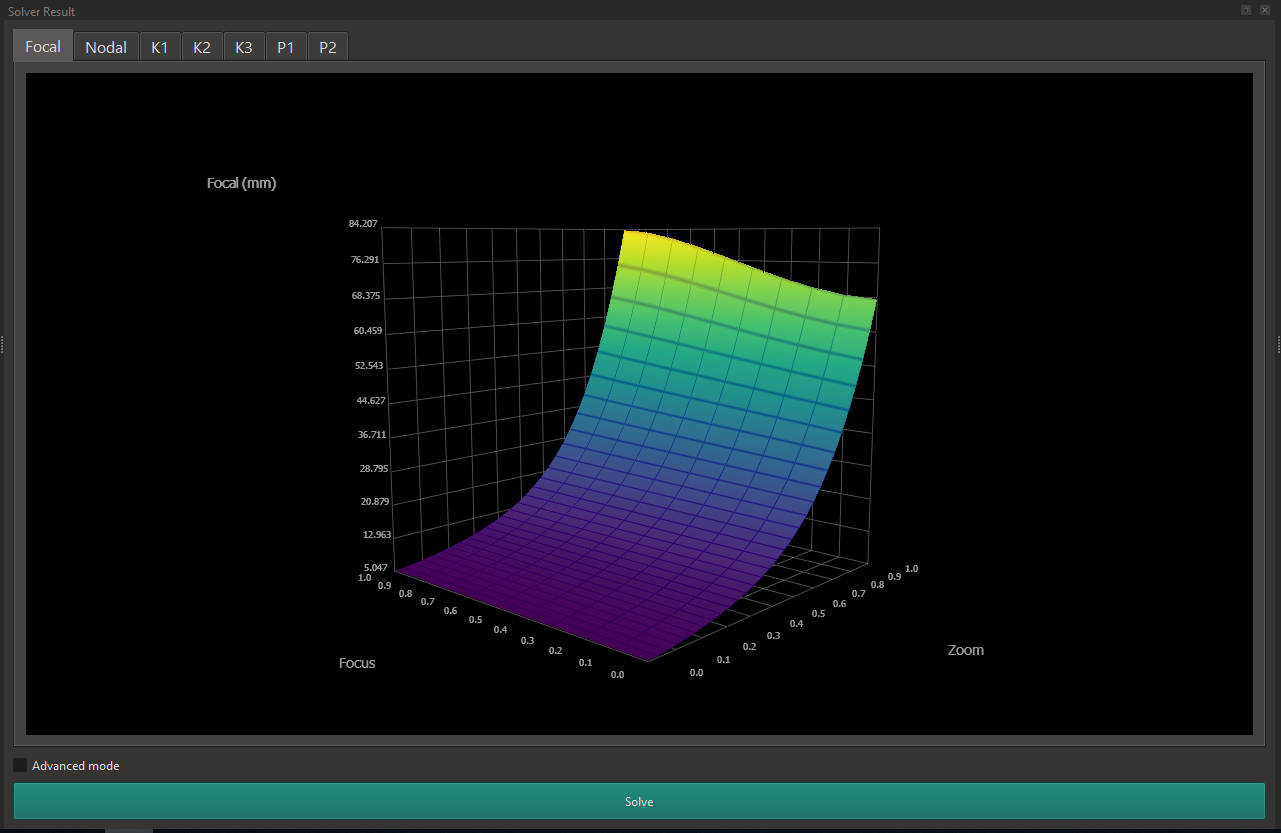

When the solver is finished, the curves for Focal Length, Entrance Pupil Distance and Distortion are displayed.

You can proceed to the next step of the calibration by clicking on the "Export" Button at the top.
